Spare parts > Poulan > CULTIVATORS/TILLERS > RJ500D RJ500D, 1999-01 > "MAINFRAME, LEFT SIDE"
Back to

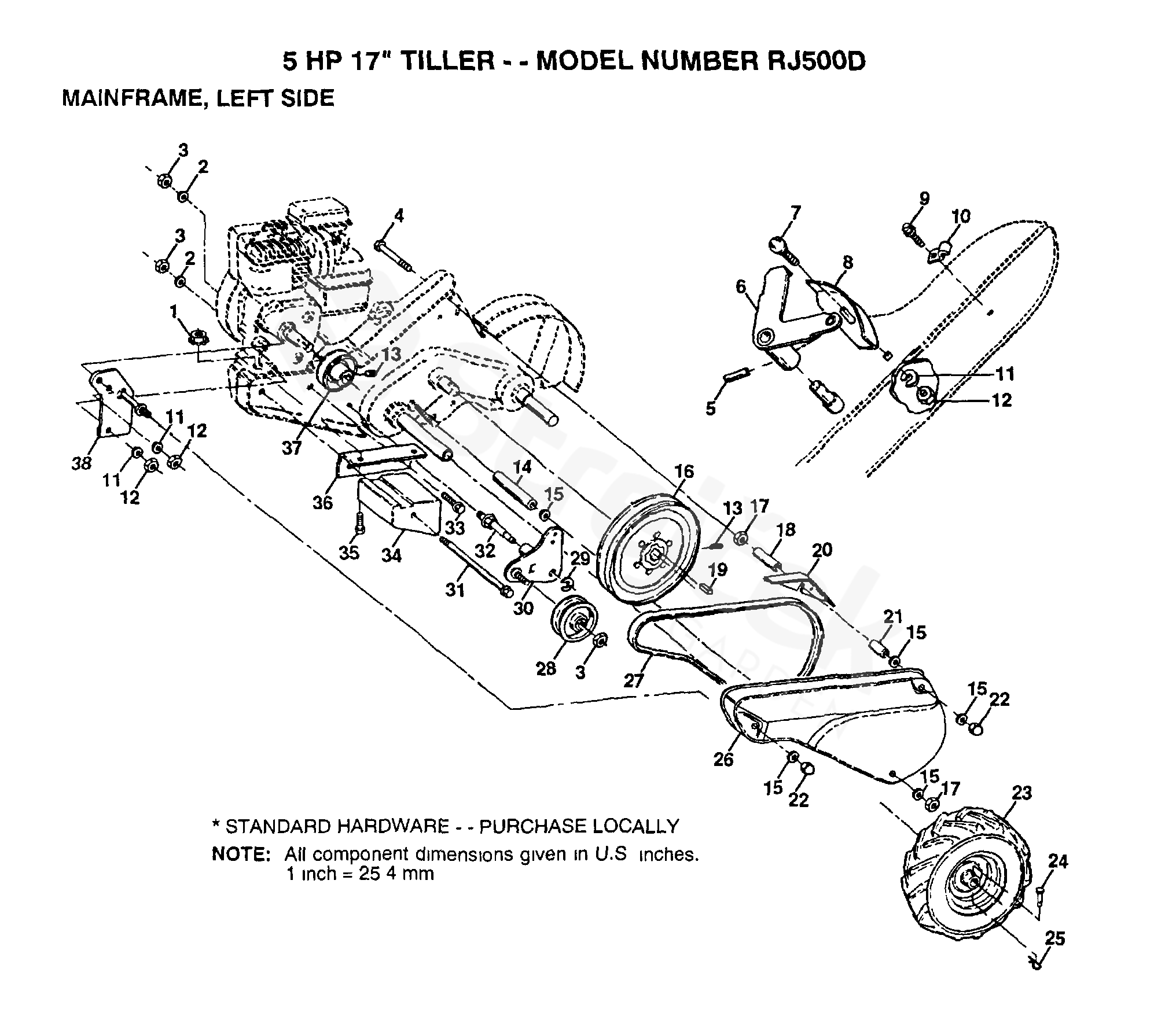

"MAINFRAME, LEFT SIDE"
RJ500D RJ500D, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RJ500D, 1999-01
1 NUT 873310500
2 WASHER 810040600
3 NUT 873220600
4 BOLT 874930568
5 GOUPILLE NPCREMP:532002882* 532001572
6 LEVER 532110111
7 BOLT 872110404
8 PANEL 532008700
9 SCREW 532086777
10 CLIP 532009484
11 WASHER 810040400
12 NUT 873220400
13 SCREW 823230506
14 SPACER 532120938
15 PODLOŽKA 819111116
16 DISC 532100473
17 NUT 873220500
18 SPACER 532110651
19 KEY 532002649
20 PROTECTOR 532110653
21 ROZPĚRKA 532131691
22 NUT 532104214
23 TIRE 532102190
24 RIVET 532102841
25 CLIP 532004497
26 COVER 532131159
27 BELT 532102143
28 PULLEY 532104679
29 RETAINING RING 812000032
30 BRACKET 532105611
31 BOLT 532102384
32 HRÍDEL 532102141
33 BOLT 874760614
34 COUNTERWEIGHT 532102383
35 BOLT 874760524
36 HOLDER 532102331
37 SHEAVE 532102142
38 BRACKET 532131558
AIR VALVE 532000795
