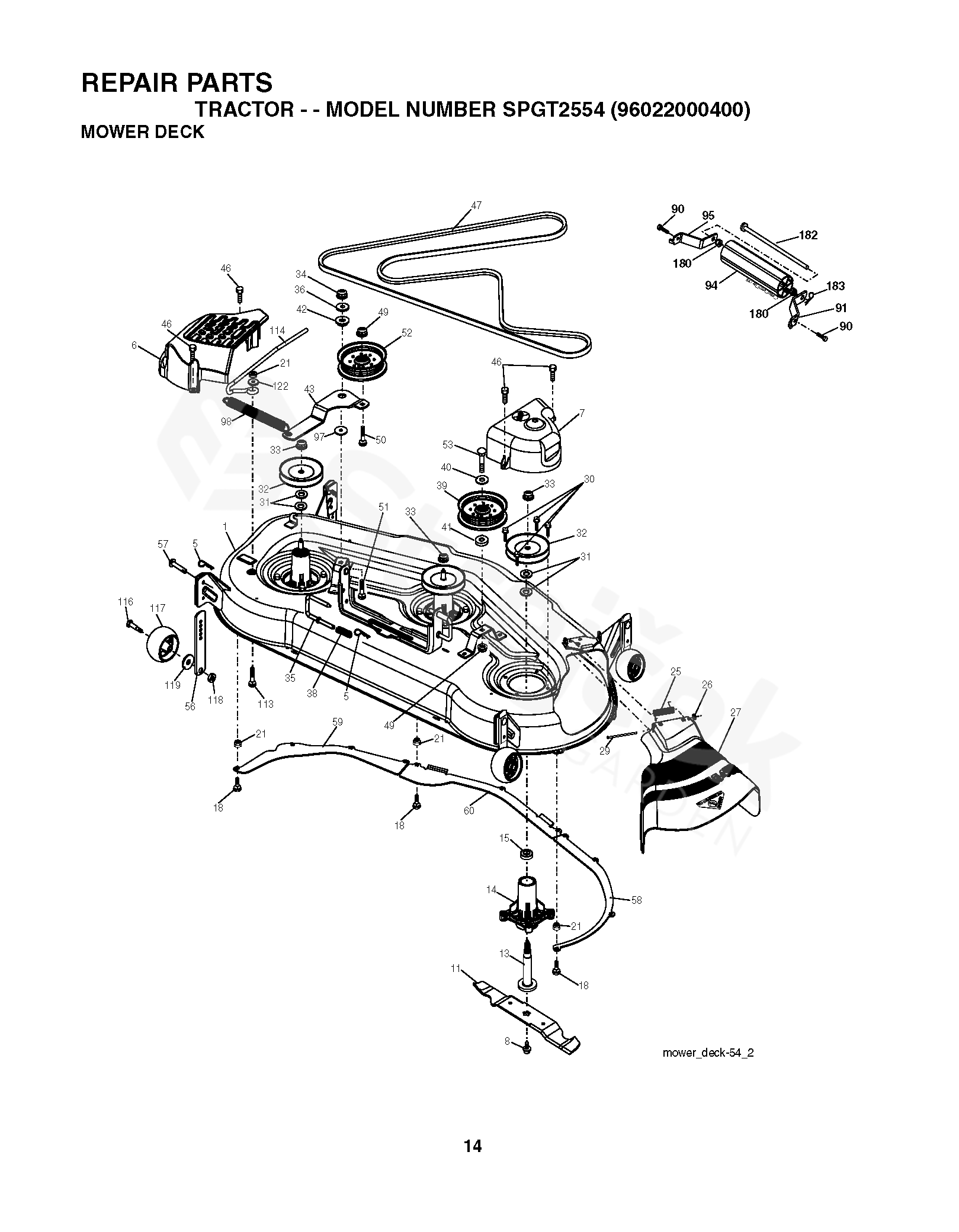

Spare parts - Partlist - SPGT25540 SPGT25540, 96022000400, 2005-07 - MOWER DECK / CUTTING DECK

Everything for your machines

SPGT25540 SPGT25540, 96022000400, 2005-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SPGT25540, 96022000400, 2005-07

1	DECK.WLDMNT	532194846
5	SPRING	532004939
6	COVER LH	532187297
7	COVER RH	532188187
8	BOLT	532174365
11	BLADE FOR MULCHING MOWERS ONLY	532187254
13	SHAFT ASM MANDREL	532187291
14	BEARING HOUSING	532187281
15	BEARING	532110485
17	BOLT	532066238
21	MATICE	873680500
25	SPRING	532178102
26	MATICE	532110452
27	DEFLECTOR	532187257
29	HRÍDEL	532131491
30	SCREW	532173984
31	PODLOŽKA	532187690
32	PULLEY	532177865
33	NUT	532178342
34	MATICE	873680600
35	PIN SUSPENSION REAR	532188635
38	SPRING COMPRESSION PULL	532188657
39	IDLER PULLEY	532187284
41	WASHER	819132203
42	SPACER	532165723
43	LEVER	532196216
46	SCREW	532137729
47	V-BELT	532191273
49	MATICE	873900600
50	BOLT	872110616
51	BOLT	872110610
52	IDLER PULLEY	532188460
56	BAR	532155986
57	PIN RETAINING SCREW	532156941
58	BAFFLE	532187342
59	BAFFLE LEFT	532187344
60	BAFFLE CENTER 54" MOWER	532187607
91	BRACKET RH	532180535
94	ROLLER	532176066
95	BRACKET LH	532180534
97	PODLOŽKA	819133210
98	SPRING CLUTCH DRIVE	532187282
113	BOLT	872110508
114	ROD TENSION RELIEF	532187556
116	ROD TENSION RELIEF	532187556
117	KOLO	532174873
118	NUT	532005394
119	PODLOŽKA	819121414
122	BUSHING	532187557
180	BRACKET	873800500
182	ROD ROLLER NOSE	532179127
183	CLIP	532163552
	MANDREL MANDREL ASM SERVICE	532187292
