Spare parts > Poulan > TRACTORS/RIDE MOWERS > SO20H42YT SO20H42YT, 96042001100, 2006-05 > STEERING
Back to

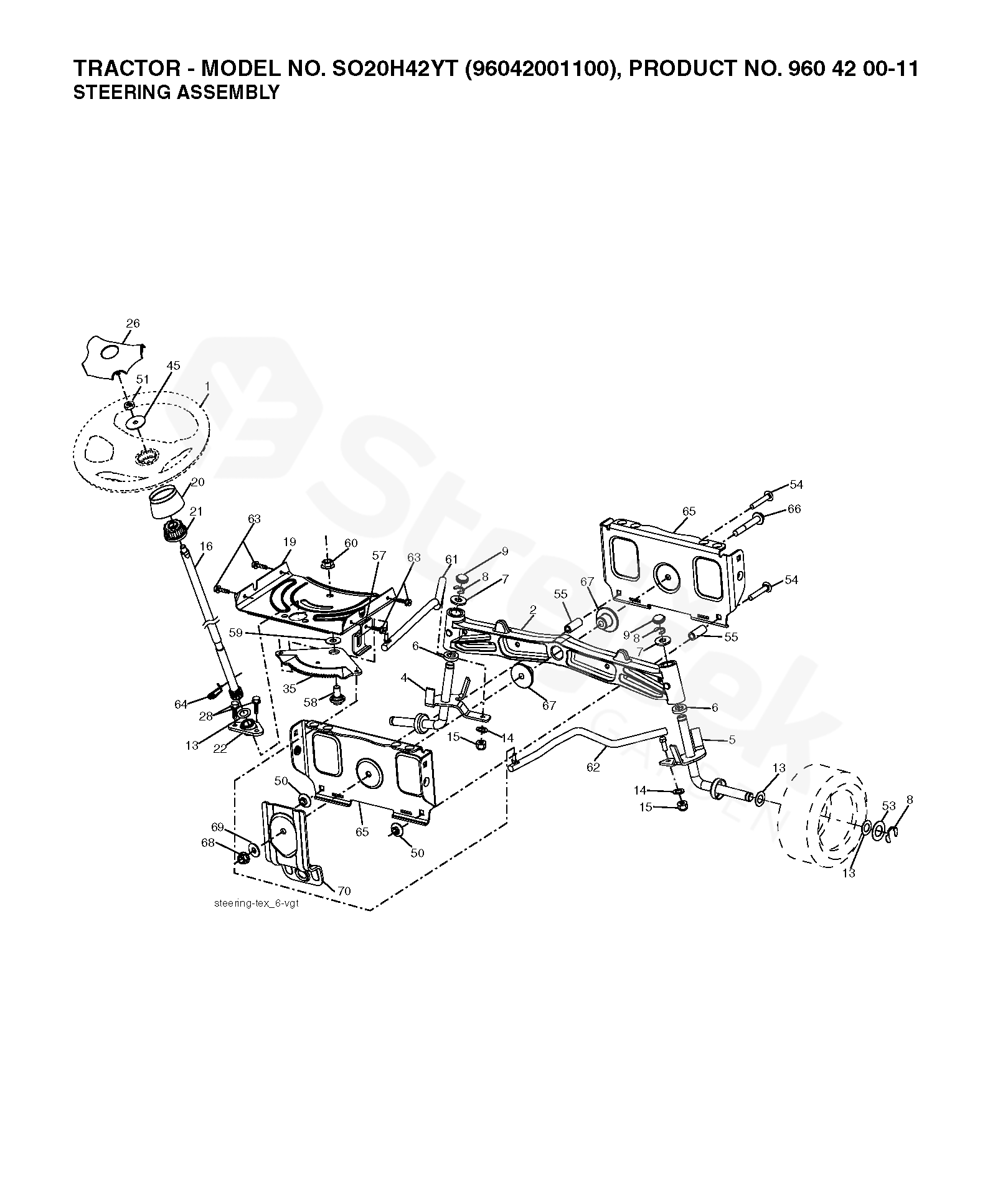

STEERING
SO20H42YT SO20H42YT, 96042001100, 2006-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SO20H42YT, 96042001100, 2006-05
1 WHEEL.STEERING.LEGND2.GRY 532186093
2 SHAFT 532195968
4 SPINDLE ASSEMBLY(L.H.)
LH 		532194743
5 SPINDLE ASSEMBLY(R.H.)
RH 		532194744
6 WASHER 532006266
7 PODLOŽKA 532121748
8 POJISTNÝ KROUŽEK 812000029
9 HUB CAP 532121232
13 WASHER 532121749
14 WASHER 810040600
15 NUT 873540600
16 SHAFT 532194746
19 PLATE 532194729
21 ADAPTER 532186737
22 BUSHING 532194845
26 INSERT CAP, STEERING WHEEL 532186095
28 SCREW 817000612
35 PLATE 532194732
45 WASHER 819113812
50 MATICE 873900600
51 NUT 873940800
53 PODLOŽKA 532188967
54 BOLT 874760636
55 SPACER 532197636
57 BRACKET 532197246
58 BOLT 532194747
59 WASHER 532194748
60 NUT 873971000
61 LINK 532194740
62 LINK 532194741
63 SCREW 817000512
64 SPRING RETAINER 532199849
65 BRACKET 532194734
66 BOLT 871020748
67 BUSHING 532194737
68 NUT 873900700
69 WASHER 532199162
70 BRACKET 532196197
