Spare parts > Poulan > TRIMMERS/EDGERS > SM132 SM132, 2006-12 > SHAFT & HANDLE
Back to

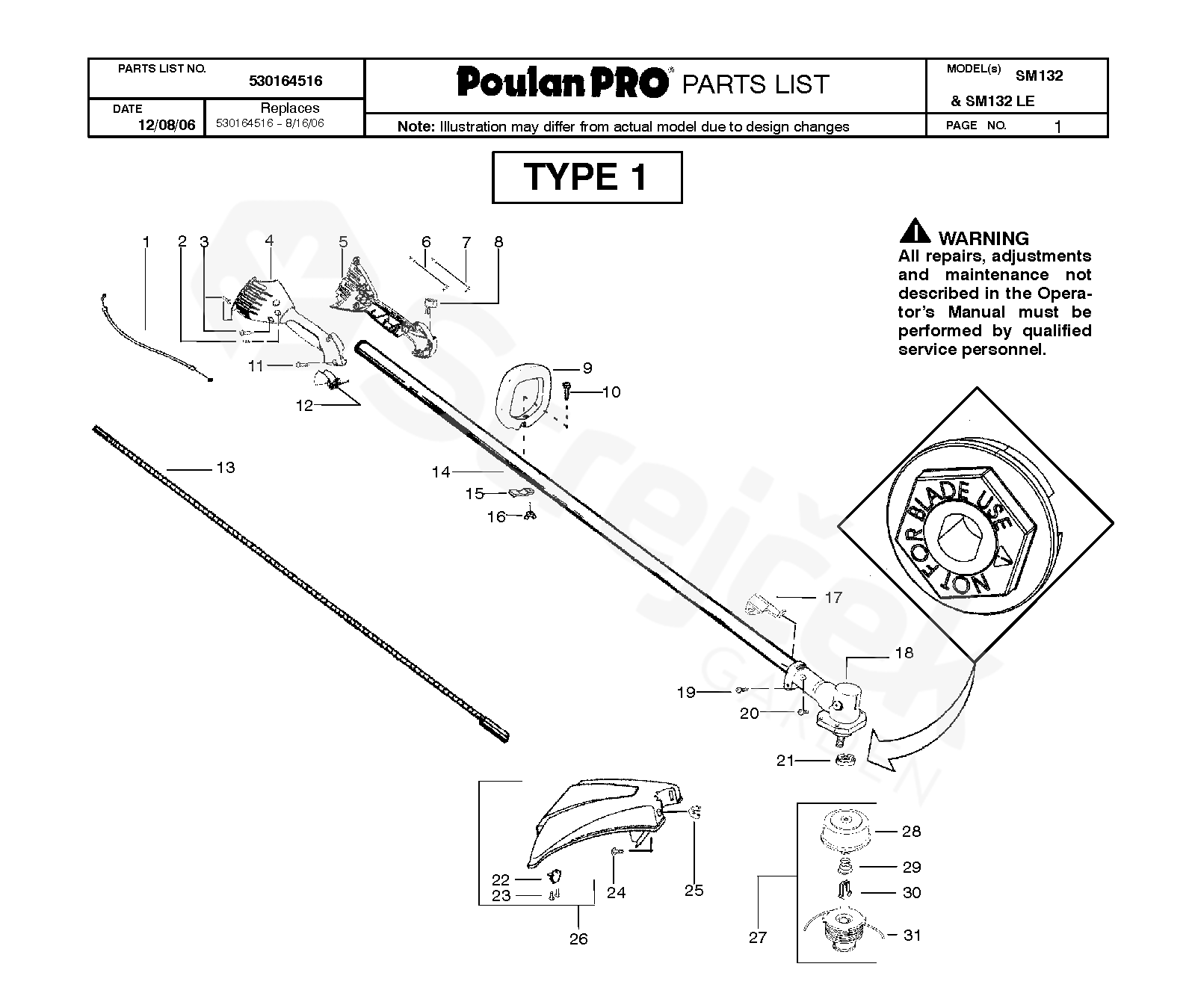

SHAFT & HANDLE
SM132 SM132, 2006-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SM132, 2006-12
1 THROTTLE WIRE 530054942
2 SCREW 530015805
3 SCREW 530015886
4 HSG.-THROTTLE (RIGHT) RIGHT
RIGHT 		530054837
5 LEFT THROTTLE HSG. 530071553
6 LOWER FRONT WIRE 530054943
7 UPPER FRONT WIRE UPPER
UPPER 		530055724
8 SWITCH 530069572
9 HANDLE 530055699
10 SCREW 530015820
11 SCREW 530015886
12 TRIGGER 530054940
13 SHAFT 530095963
14 DRIVE SHAFT ASSY 530055355
15 CLAMP 530088416
16 KŘÍDLOVÁ MATICE 530016152
17 BRACKET 530095812
18 BEVEL GEAR 530071584
19 SCREW 530016014
20 SCREW 530016224
21 CUP 530095814
22 LIMITER CAP 530052285
23 SCREW 530015805
24 SCREW 530015820
25 KŘÍDLOVÁ MATICE 530016152
26 BLADE 530069779
27 C/HEAD 952711581
28 ASSEMBLY
"3/8H, 2X" 		530095772
29 SPRING 530053241
30 RETAINER 530401957
31 SPOOL 952711580
DECAL 530057369
