Spare parts > Husqvarna Construction Products > DRILLING EQUIPMENT > DS50 ATS DS50 ATS, 2007-10 > CARRIAGE
Back to

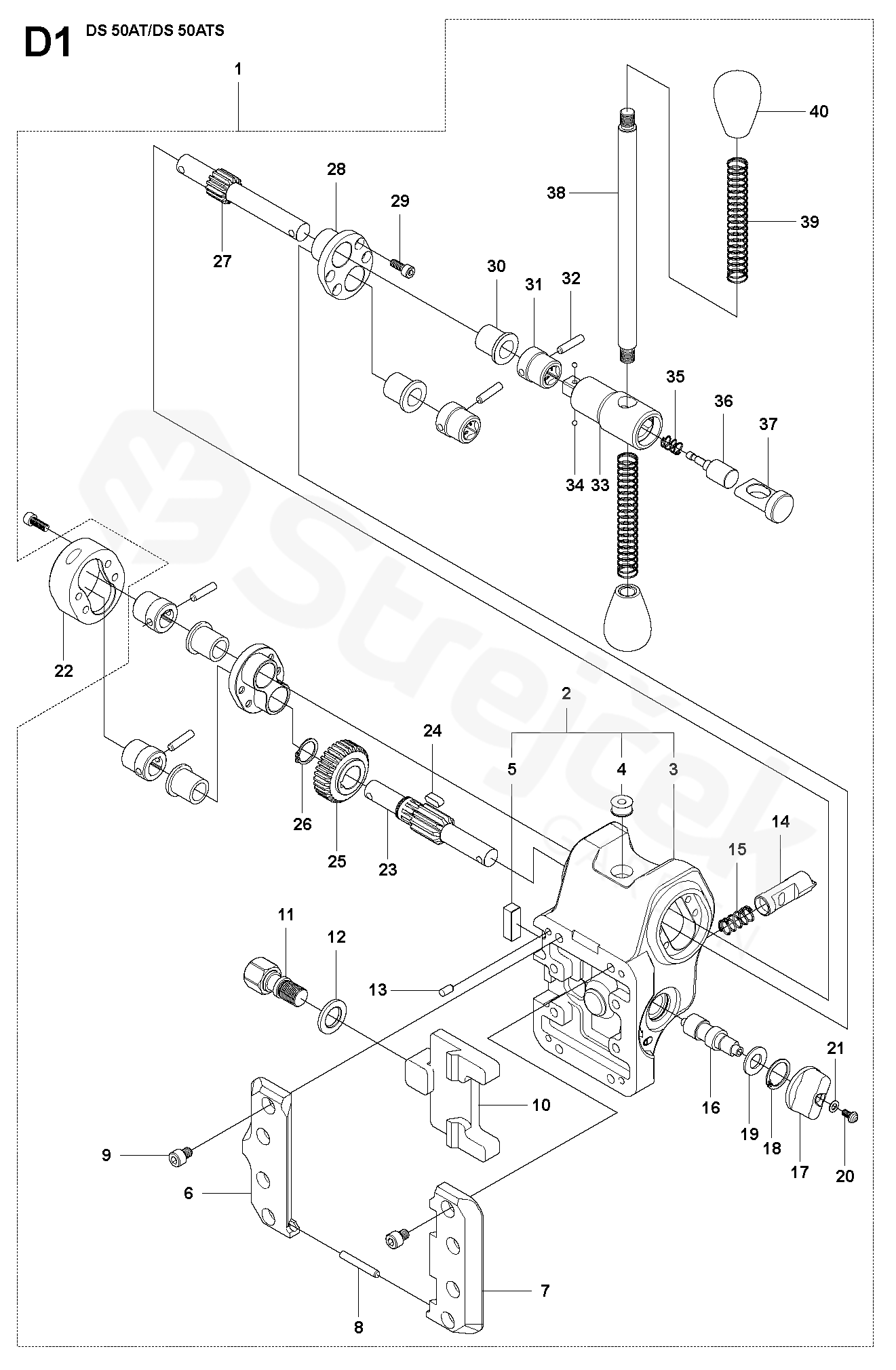

CARRIAGE
DS50 ATS DS50 ATS, 2007-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DS50 ATS, 2007-10
1 CASE Incl. 2, 6-41 and 2-11 on Page C2
Incl. 2, 6-41 and 2-11 on Page D2 		505400301
2 SHREDDER CASE Incl. 3-5
Incl. 3-5 		505400310
3 CASE 505400307
4 LEVEL 531140897
5 LEVEL 531140898
6 CASE 504908322
7 CASE 504908321
8 SHREDDER CASE 504908323
9 CASE 504908324
10 CASE 504908325
11 SCREW 504903601
12 WASHER 504711901
13 PIN 504908326
14 SHAFT 504711802
15 CASE 505400308
16 CASE 505400309
17 CASE 504908317
18 CASE 504908316
19 CASE 504908315
20 CASE 504908319
21 CASE 504908318
23 GEAR WHEEL SHAFT 504904901
24 CASE 504908336
25 GEAR WHEEL 504600601
26 CASE 504908335
27 GEAR WHEEL 504600602
28 CASE 504908307
29 SHREDDER CASE 504908312
30 CASE 504908308
31 CASE 504908309
32 CASE 504908310
33 SHREDDER CASE 505400303
34 CASE 504908305
35 SHREDDER CASE 504908304
36 SHREDDER CASE 505400304
37 SHREDDER CASE 505400305
38 HANDLE 531140682
39 SPRING 531140673
40 GRIP 531140672
