Spare parts > Husqvarna Construction Products > EARLY ENTRY SAWS > SOFF CUT 150 D SOFF CUT 150 D, Valid from machine 2010 3000001, 2010-10 > ENGINE
Back to

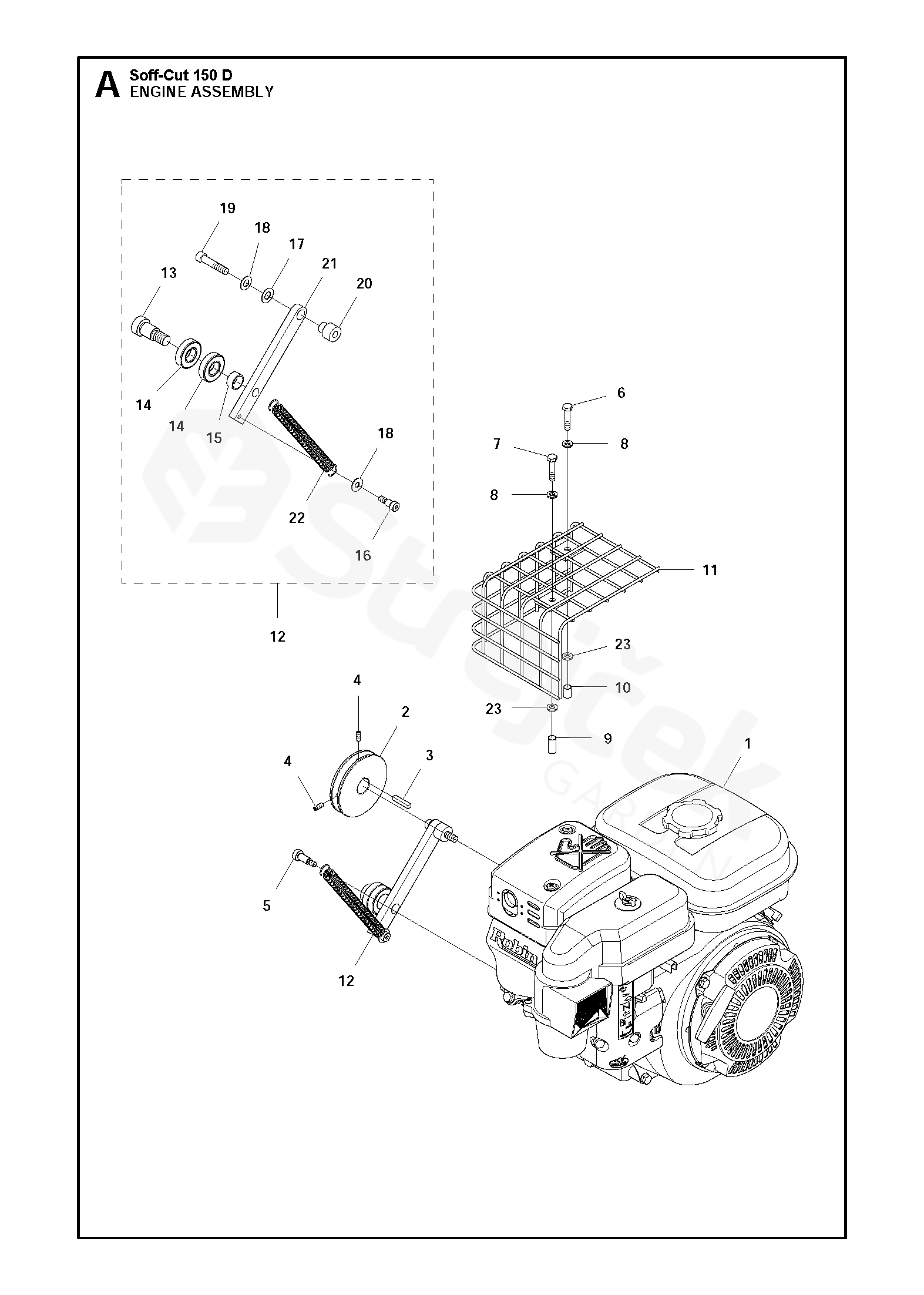

ENGINE
SOFF CUT 150 D SOFF CUT 150 D, Valid from machine 2010 3000001, 2010-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SOFF CUT 150 D, Valid from machine 2010 3000001, 2010-10
1 ENGINE 505593901
2 1/3V315JA SHEAVE 505593301
3 KEY 510317301
4 SCREW 505630101
5 BOLT 505591501
6 SCREW EHHM 725237471
7 SCREW EHHM 725237671
8 LK WASH 1/4 SPLIT SS 505632801
9 3/8 O.D. X .770 LONG X .028 WA 505684401
10 ROZPĚRKA 510346101
11 KRYT TLUMIČE VÝFUKU 505841601
12 ASSEMBLY 510271711
13 BOLT 505726201
14 PULLEY 505736001
15 ROZPĚRKA 505714602
16 BOLT 505726501
17 FLAT WSHR .750X.379 X.031 DEL 505634501
18 PODLOŽKA 505725201
19 BOLT 505591901
20 ROZPĚRKA 505589001
21 ARM 505587301
22 PRUŽINA 505737901
23 PODLOŽKA 505632001
