Husqvarna Construction Products
>
EARLY ENTRY SAWS
>
SOFF CUT 4000 SOFF CUT 4000, 2015-10
>
RUKOJEŤ
Back to
SOFF CUT 4000
SOFF CUT 4000, 2015-10
RUKOJEŤ
SOFF CUT 4000
SOFF CUT 4000, 2015-10

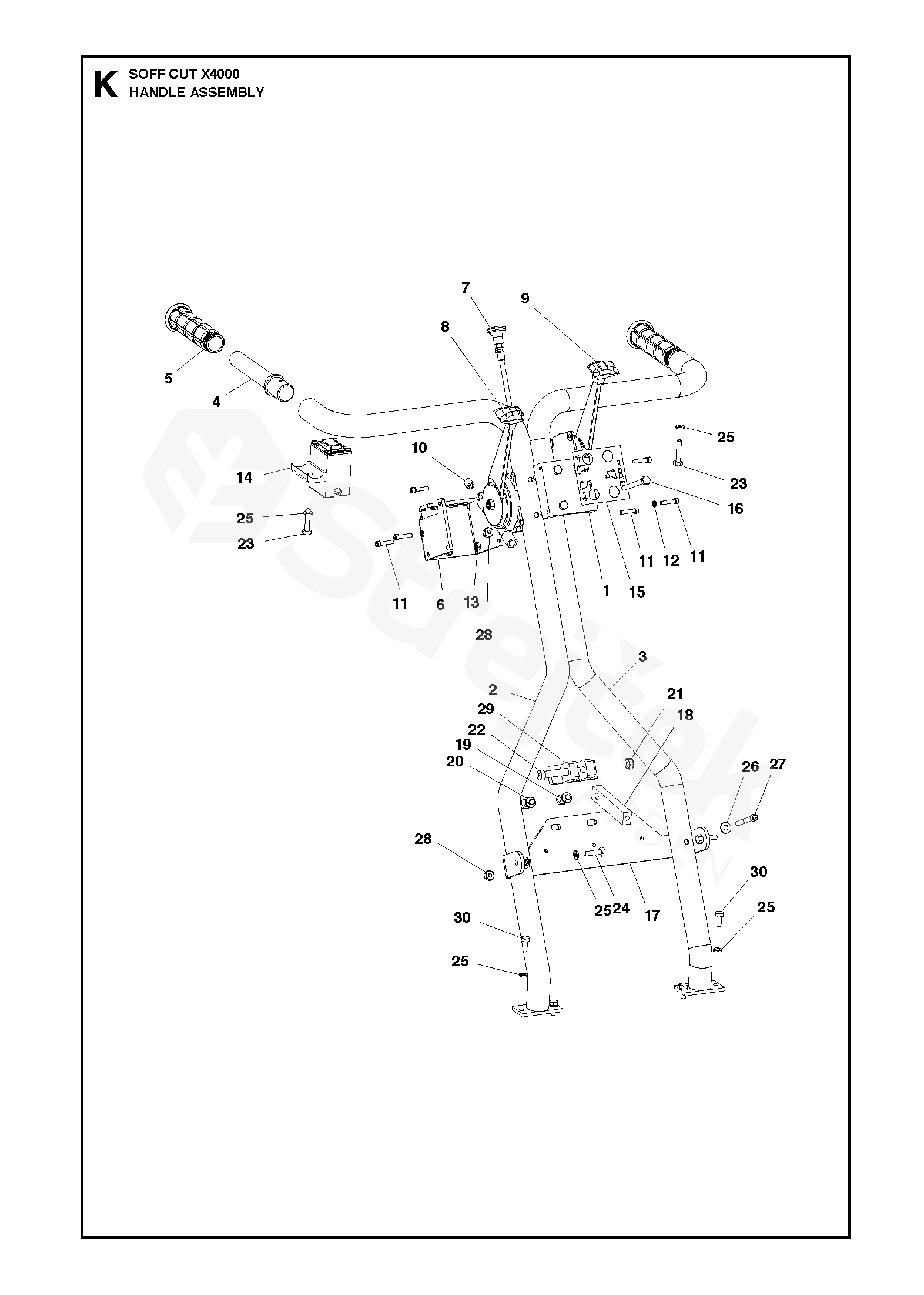

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SOFF CUT 4000, 2015-10
1
HANDLE/CONTROL BLOCK
505829201
2
RUKOJEŤ
505829301
3
RUKOJEŤ
505829401
4
RUKOJEŤ
505829101
5
DRŽADLO RUKOJETI
505601101
6
CONTROL MOUNT BRACKET
505816801
7
LANKO PLYNU
505827301
8
OVLÁDACÍ PÁČKA
505823601
9
OVLÁDACÍ PÁČKA
505823601
10
SET SCREW 7/16-20X1/2
505822401
11
BOLT
505772801
12
LK WASH #10 SPLIT SS
505633101
13
NYLOC NUT 10-32 S.S.
505822201
14
OVLADAČ
505831601
15
STICKER. LABEL CONTROL
510341301
16
HEX BOLT 1/4-20-2 3/4 ALL THRD
505728001
17
BRACKET. TRANS PLATE
505830601
18
PUMP RELEASE ARM
505830901
19
SCREW
539976934
20
LK WASH 5/16 SPLIT SS
505633001
21
MATICE
539990717
22
BOLT
505771501
23
HEX BOLT 1/4-20 X 1 1/4" ALL T
505728301
24
BOLT
505686901
25
LK WASH 1/4 SPLIT SS
505632801
26
PODLOŽKA
505632001
27
SHC 1/4-20-2 S.S.
505728901
28
MATICE
539976978
29
ACTUATOR
505756901
30
BOLT
505627401
