Spare parts > Husqvarna Construction Products > FLOOR SAWS > FS513/FS520/FS524 FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02 > CONTROL CONSOLE
Back to

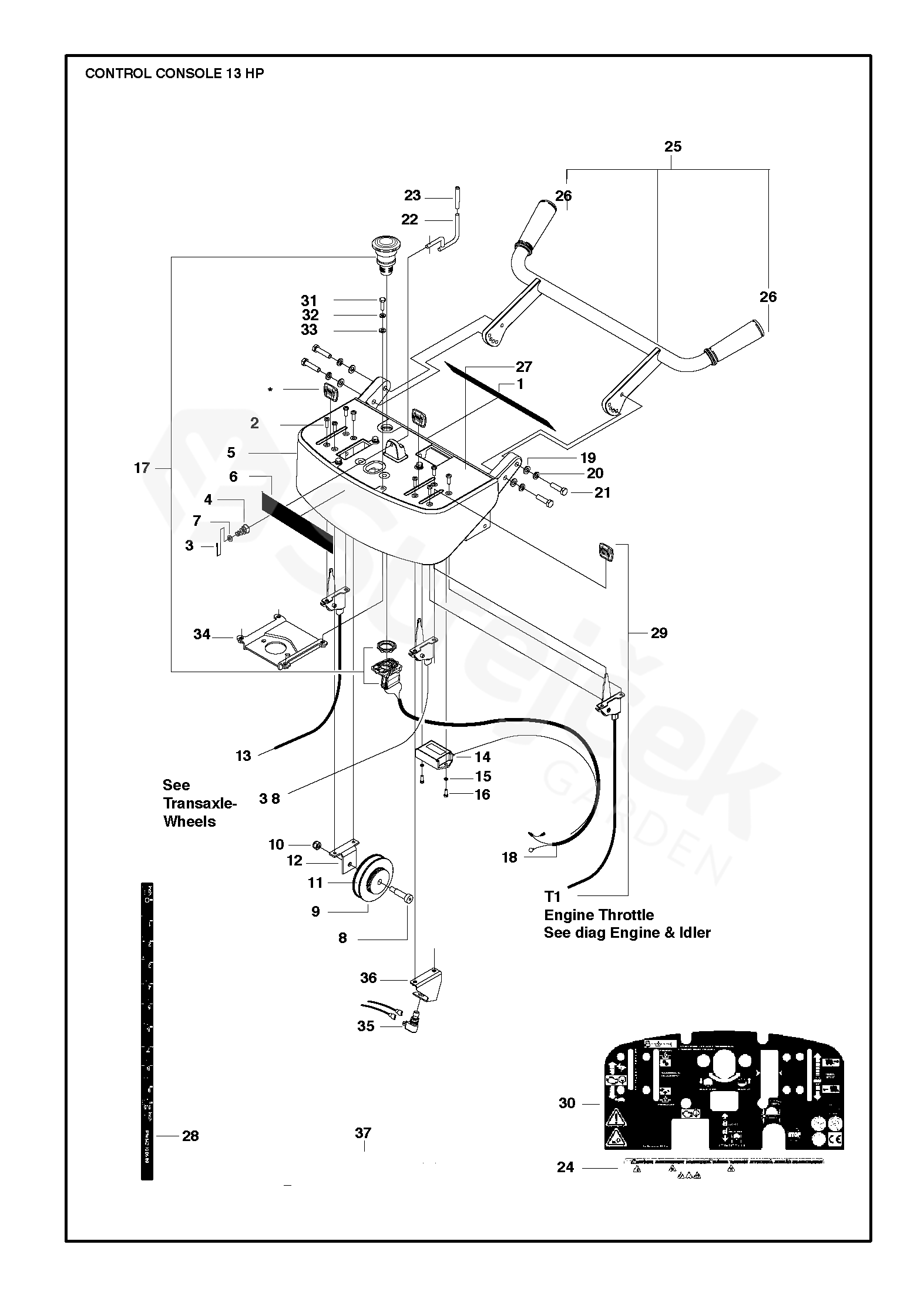

CONTROL CONSOLE
FS513/FS520/FS524 FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02
1 DECAL 542190638
2 SCREW CRPANM 724132951
3 PIN 721614301
4 SPRING 542204113
5 CONSOLE 586469001
6 DECAL 542190733
7 PODLOŽKA 734115201
8 BOLT 541208279
9 WHEEL 542202163
10 HEXAGON LOCKING NUT 732251871
11 DECAL 542190589
12 BRACKET 542202164
13 CABLE KIT 581491301
14 HOUR METER 539300556
15 SPRING WASHER 4.1X7.1 735113601
16 SCREW EHHM 725229171
17 STOP SWITCH 582101501
18 CORD 542182252
19 PODLOŽKA 734116301
20 PRUŽNÁ PODLOŽKA 735116401
21 SCREW EHHM 725245771
22 LOCKING PIN 542204109
23 CAP 542202169
24 DECAL 542190638
25 HANDLEBAR 542204186
26 DRŽÁK 542139568
27 DECAL 502240101
28 DECAL 542190589
29 THROTTLE 542204151
30 DECAL 502240101
31 SCREW EHHM 725237071
32 PODLOŽKA 735115301
33 PODLOŽKA 734115201
34 BRACKET 502856205
35 SWITCH 542204052
36 BRACKET 504068004
37 DECAL 542190733
38 CABLE ASSY 542202330
