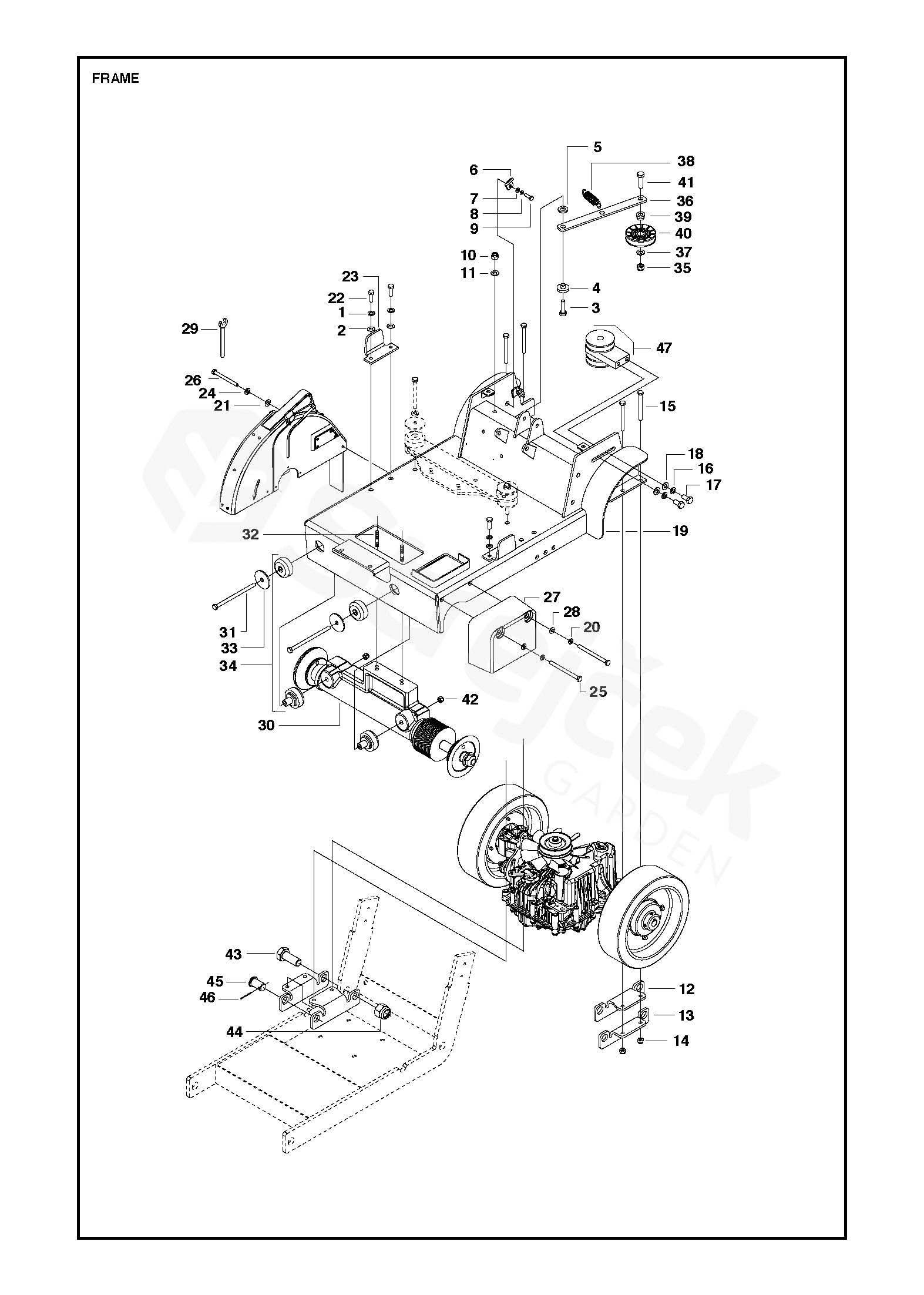

FS513/FS520/FS524 FS513/FS520/FS524, Valid for Machine numbers FS520-2150, FS524-1630 and forward, 2011-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS513/FS520/FS524, Valid for Machine numbers FS520-2150, FS524-1630 and forward, 2011-02

1	PRUŽNÁ PODLOŽKA	735116401
2	PODLOŽKA	734116301
3	SCREW EHHM	725249571
4	BUSHING	504111002
5	SPACER	504111302
6	PLATE	542203117
7	PODLOŽKA	734115201
8	PODLOŽKA	735115301
9	SCREW EHHM	725237071
10	HEXAGON LOCKING NUT	732252001
11	HEXAGON NUT	734117201
12	BRACKET	541207212
13	BRACKET	541207214
14	HEXAGON LOCKING NUT	732251801
15	SCREW EHHM	725246751
16	PRUŽNÁ PODLOŽKA	735117301
17	SCREW EHHM	725249171
18	HEXAGON NUT	734117201
19	BASE	542204140
20	PRUŽNÁ PODLOŽKA	735116401
21	PODLOŽKA	734116301
22	SCREW EHHM	725245371
23	BRACKET	542204185
24	PRUŽNÁ PODLOŽKA	735116401
25	SCREW EHHM	725247151
26	BOLT	725247171
27	GUARD	542202374
28	PODLOŽKA	734116301
29	WRENCH	543045891
30	BLADE SHAFT	541207241
31	HHCS. M10X1.5X130MM Z/P	542184455
32	STUD	542202289
33	WASHER	542202106
34	ISOLATOR	542161196
35	HEXAGON LOCKING NUT	732252001
36	ARM	541207229
37	HEXAGON NUT	734117201
38	SPRING. TENSIONING	542202333
39	BUSHING	542204137
40	PULLEY	542167763
41	SCREW EHHM	725249971
42	HEXAGON LOCKING NUT	732252001
43	BOLT	542204135
44	NUT	543074065
45	PIN	542204121
46	SPLIT PIN	721621401
47	JACKSHAFT ASSEMBLY	541208319
