Spare parts > Husqvarna Construction Products > POWER CUTTERS > K960 K960, 2007-10 > BELT GUARD & PULLEY
Back to

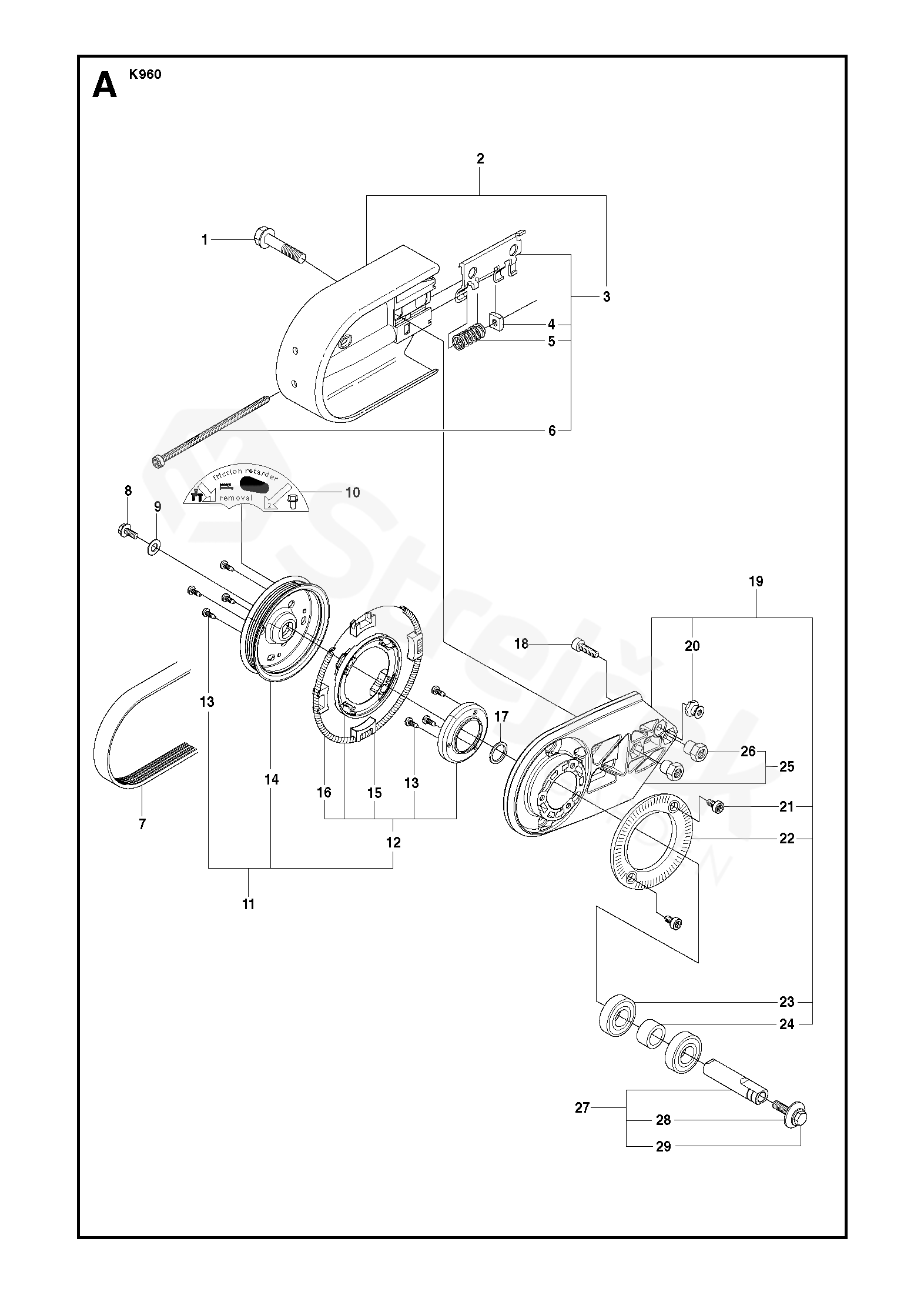

BELT GUARD & PULLEY
K960 K960, 2007-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K960, 2007-10
1 SCREW EHHFM 506284401
2 BELT GUARD
Incl. 3 		506393602
3 BELT TENSIONER ASSY
Incl. 4, 5, 6 		506266604
4 MATICE 506409301
5 COMPRESSION SPRING 506266801
6 SCREW CITXSCM 503207205
7 BELT "16"""
"16""" 		544908404
8 SCREW EHHFM 503200045
9 PODLOŽKA 503230116
10 LABEL 502470401
11 PULLEY Incl. 12 - 16
Incl. 12 - 16 		504037001
12 PULLEY Incl. 13, 15, 16
Incl. 13, 15, 16 		504037003
13 SCREW CCRPANT 503212810
14 PULLEY 544440601
15 BRAKE SHOE 544440401
16 DRAW SPRING 544441001
17 PODLOŽKA 503230104
18 SCREW IHSCM 725532955
19 BEARING HOUSING Incl. 19 - 25, 27
Incl. 20 - 24 		506394205
20 TORSION STOP 506143201
21 SCREW ITXSCM 503215310
22 SCREEN 506288401
23 BALL BEARING 503252101
24 ROZPĚRNÉ POUZDRO 506070801
25 BEARING HOUSING Incl. 26
Incl. 26 		506394211
26 MATICE 506287301
27 HRÍDEL
Incl. 28, 29 		506298363
28 PODLOŽKA 506139511
29 SCREW EHHFM 506139601
